DPT-Ctrl Flow Meter Series Datasheet

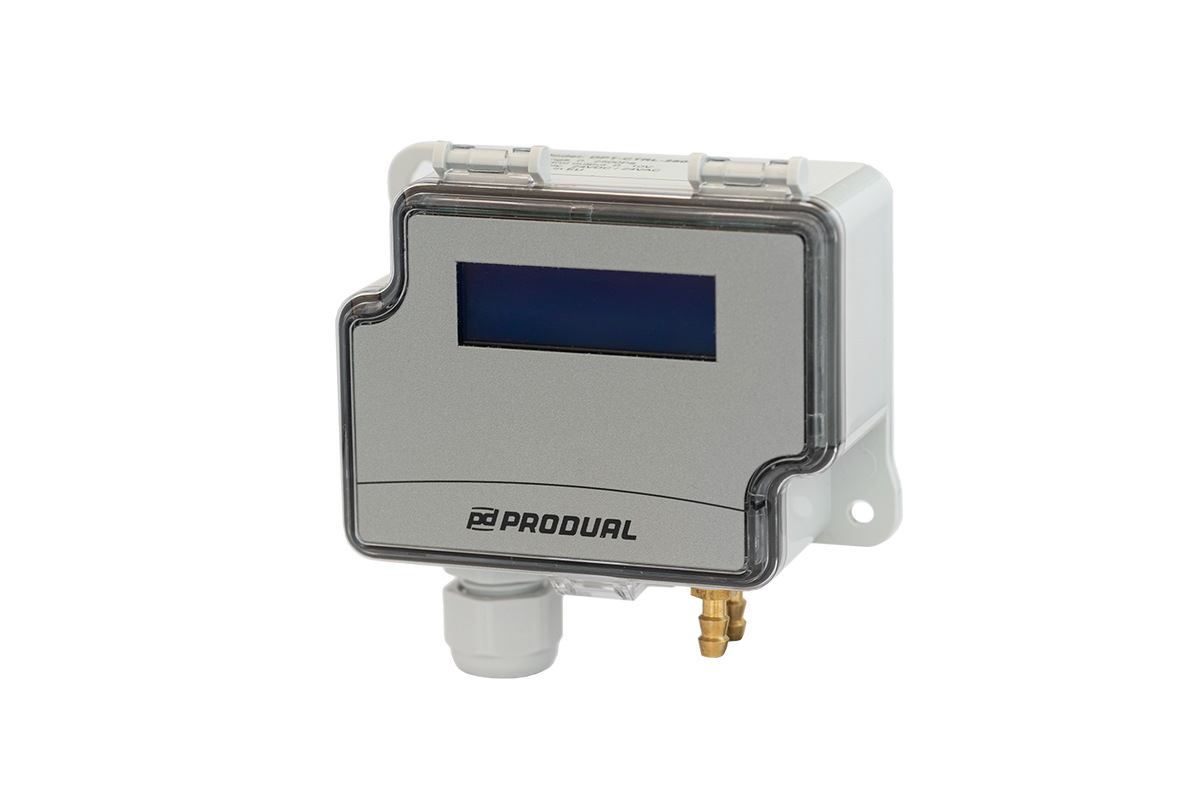

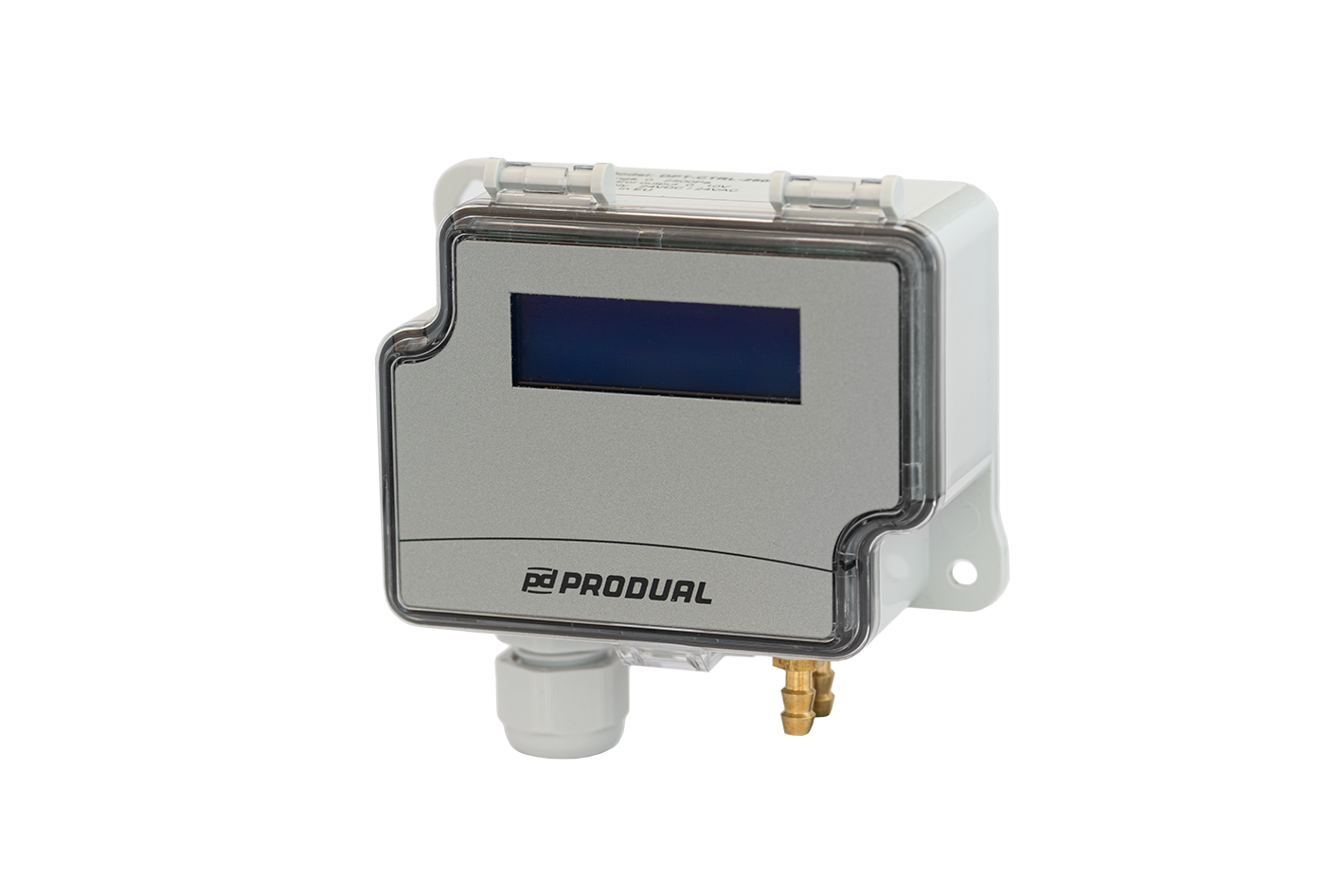

DPT-Ctrl - Differential pressure or airflow controller

Description: The DPT-Ctrl differential pressure or airflow controllers are engineered for building automation systems, offering precise control over constant pressure or airflow in fans, VAV systems, or dampers. These controllers can be configured to control differential pressure or airflow across ducts or centrifugal fans, providing versatile solutions for HVAC applications. The user-friendly interface allows for easy setup and adjustment of settings according to specific requirements.

Key Features and Selectable Functions:

• PID controller for controlling differential pressure or airflow
• Measurement and monitoring of differential pressure or airflow
• Multiple selectable measurement units
• Voltage or current output options
• Optional automatic zeroing function (-AZ models)

With the automatic zeroing function (-AZ models), the transmitter zero point remains accurate by automatically compensating for any potential zero point drift, minimizing the need for recalibration.

Technical Specifications:

• Supply: 24 Vac/dc (22...26 V)
• Power Consumption:
  • < 1 VA
  • < 4 VA for -40°C models (when temperature is below 0°C)
• Pressure Measurement Range:
  • -2500 models: 0...2500 Pa / custom setting
  • -7000 models: 0...7000 Pa / custom setting
• Accuracy (25°C):
  • -2500 models:
    • Pressure < 125 Pa: ±1% ±2 Pa
    • Pressure > 125 Pa: ±1% ±1 Pa
  • -7000 models:
    • Pressure < 125 Pa: ±1.5% ±2 Pa
    • Pressure > 125 Pa: ±1.5% ±1 Pa
• Time Constant: 1...20 s
• Zeroing:
  • Manual with push button
  • Automatic for -AZ models
• Max. Over Pressure: 30 kPa
• Connection: Ø5.2 mm
• Medium: Dry air or non-aggressive gas
• Output:
  • 0...10 Vdc, > 1 kΩ
  • 4…20 mA, load 20...500 Ω
• Display: Backlit dot matrix display
• Wiring Terminals: 1.5 mm2
• Appliance Class (IEC 60664-1): III
• Operating Conditions:
  • Temperature: -20...50°C
  • Temperature (-AZ models): -5...50°C
  • Temperature (-40°C models): -40...50°C
  • Humidity: 0...95 %rH (non-condensing)
• Housing:
  • Material: ABS and PC plastic
  • Protection Class: IP54
  • Cable Gland: M16
• Mounting: 2 x Ø4.3 mm screw holes, one slotted
• Dimensions (w x h x d): 90 x 95 x 36 mm
• Weight: 150 g

Part Numbers:
DPT-Ctrl-2500-D - Flow Meter Ctrl 2500Pa Display Man.
DPT-Ctrl-2500-AZ-D - Flow Meter Ctrl 2500Pa Display Az
DPT-Ctrl-2500-D-40C - Flow Meter Ctrl 2500Pa Display Man.
DPT-Ctrl-7000-D - Flow Meter Ctrl 7000Pa Display Man.
DPT-Ctrl-7000-AZ-D - Flow Meter Ctrl 7000Pa Display Az
DPT-Ctrl-7000-D-40C - Flow Meter Ctrl 7000Pa Display Man.

Need help to order a specific Part-Number? Contact Us!
